29" WHEELS // 138mm REAR // 140/150mm FRONT

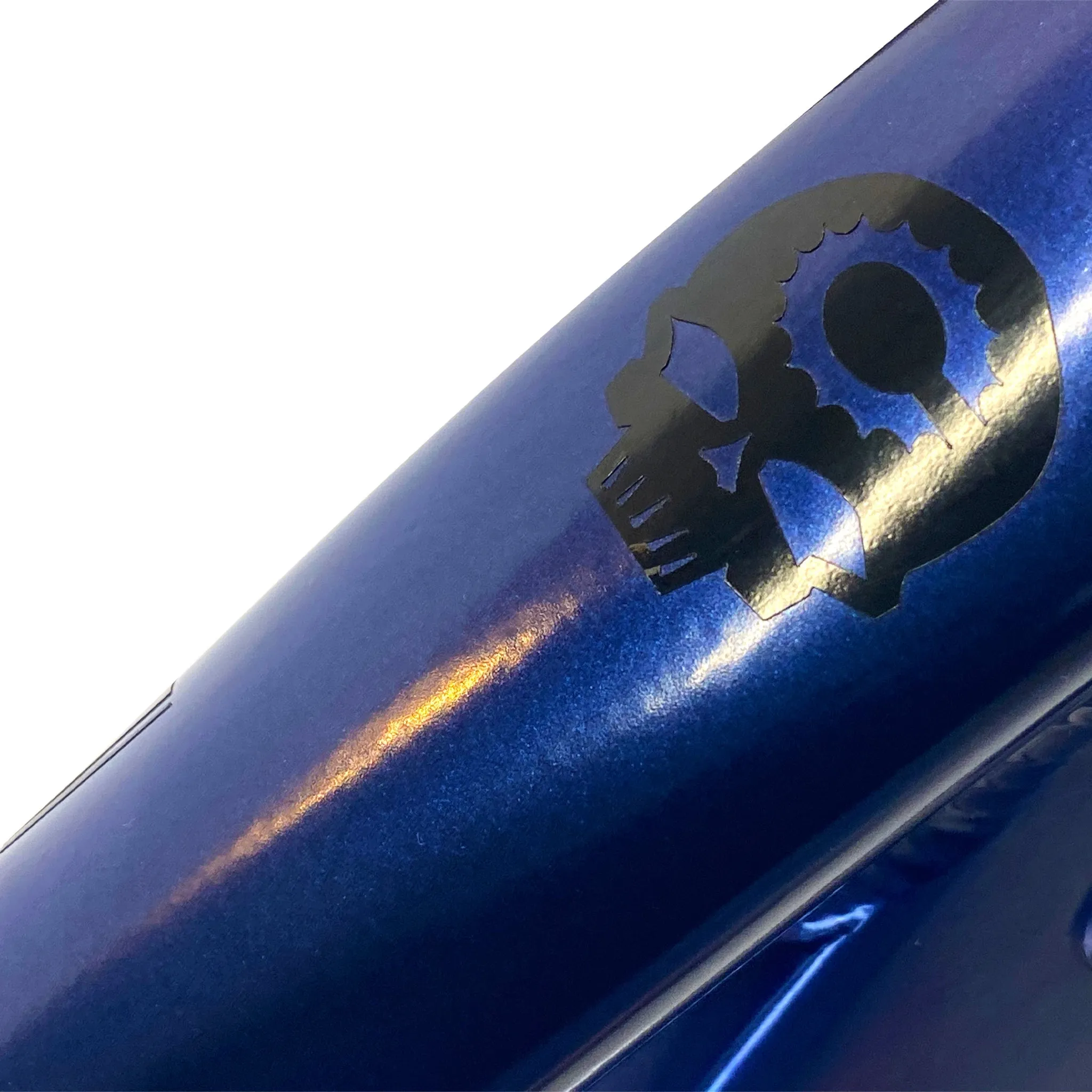

There’s a party on the trails and you’re invited. The Tilt is an efficient all-rounder that climbs like a mountain goat with a meth habit. But make no mistake—like any bike with a skull on the headtube, it’s ready to party when gravity takes over.
GEO & SIZING
| | SMALL | MEDIUM | LARGE | XL |
| Top Tube Length (Effective) | 566mm | 593mm | 620mm | 646mm |
| Reach | 425mm | 450mm | 475mm | 500mm |
| Front Center | 746mm | 773mm | 800mm | 827mm |
| Stack | 615mm | 620mm | 624mm | 629mm |
| Standover | 697mm | 730mm | 762mm | 779mm |
| Wheel Base | 1,170mm | 1,198mm | 1,225mm | 1,252mm |
| Head Tube Angle* | 65° | 65° | 65° | 65° |
| Head Tube Length | 110mm | 115mm | 120mm | 125mm |
| Seat Tube Angle (Effective) | 77° | 77° | 77° | 77° |
| Seat Tube Angle (Actual) | 69.2° | 69.2° | 69.2° | 69.2° |
| Seat Tube Length | 380mm | 420mm | 460mm | 490mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm |
| Bottom Bracket Height (Approx.)** | 343mm | 343mm | 343mm | 343mm |
| Bottom Bracket Drop | 32mm | 32mm | 32mm | 32mm |
| Rider Height*** | 5'2"-5'7" | 5'5"-5'11" | 5'9"-6'3" | 6'1"-6'6" |
FEATURES
• 29” Trail/All-Mountain
• Patented Canfield Balance Formula™ Suspension

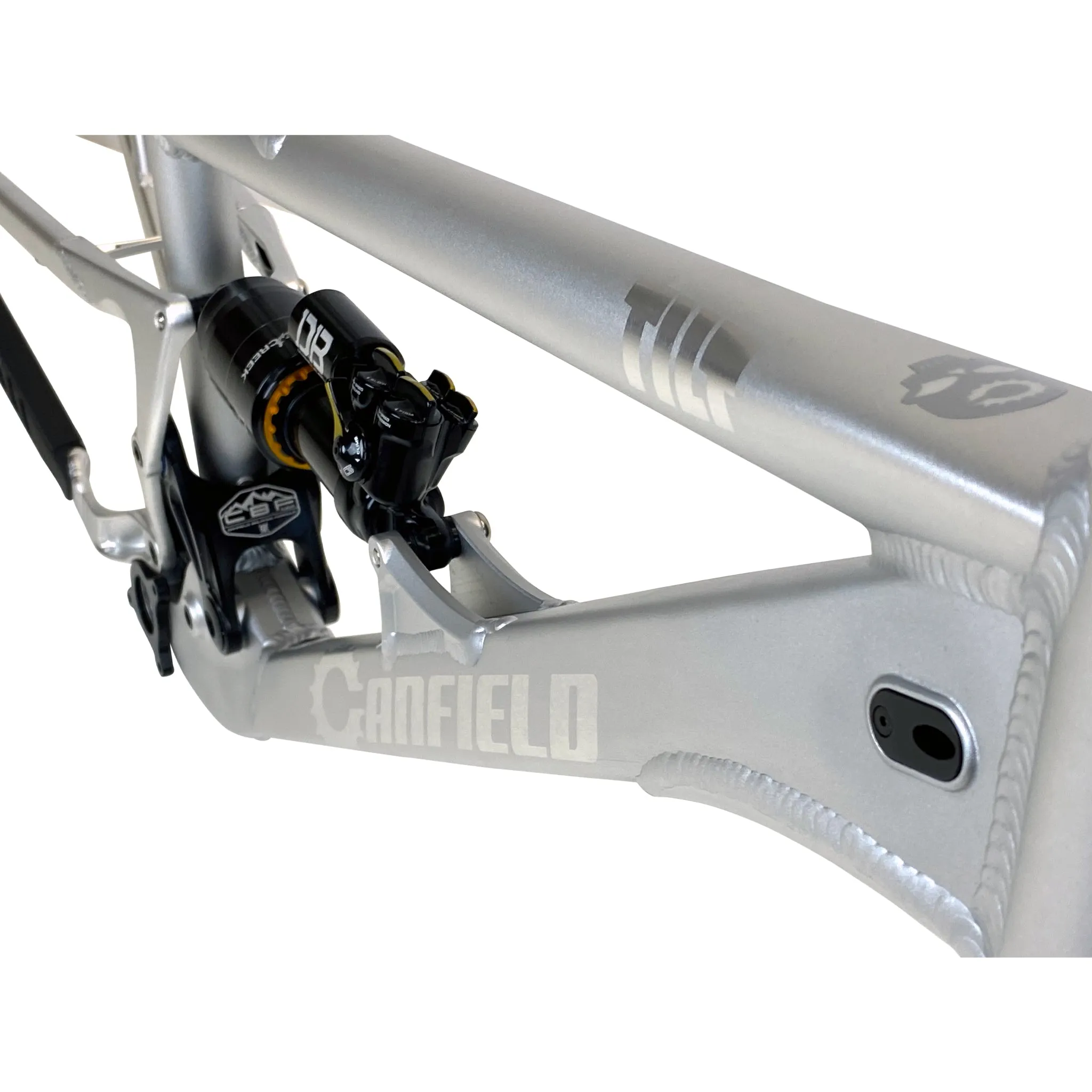

• Internal cable routing
• Forged clamshell bottom bracket assembly

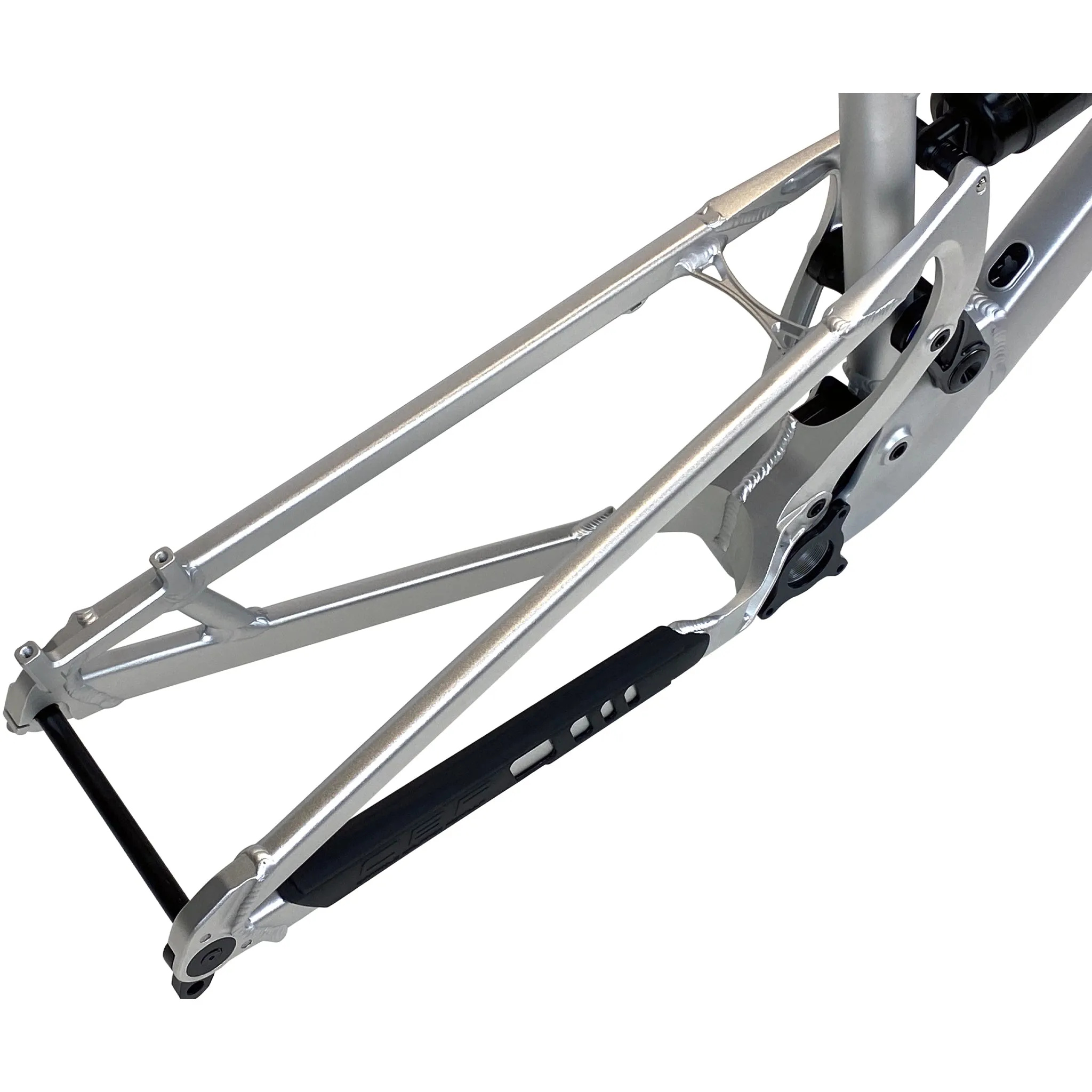

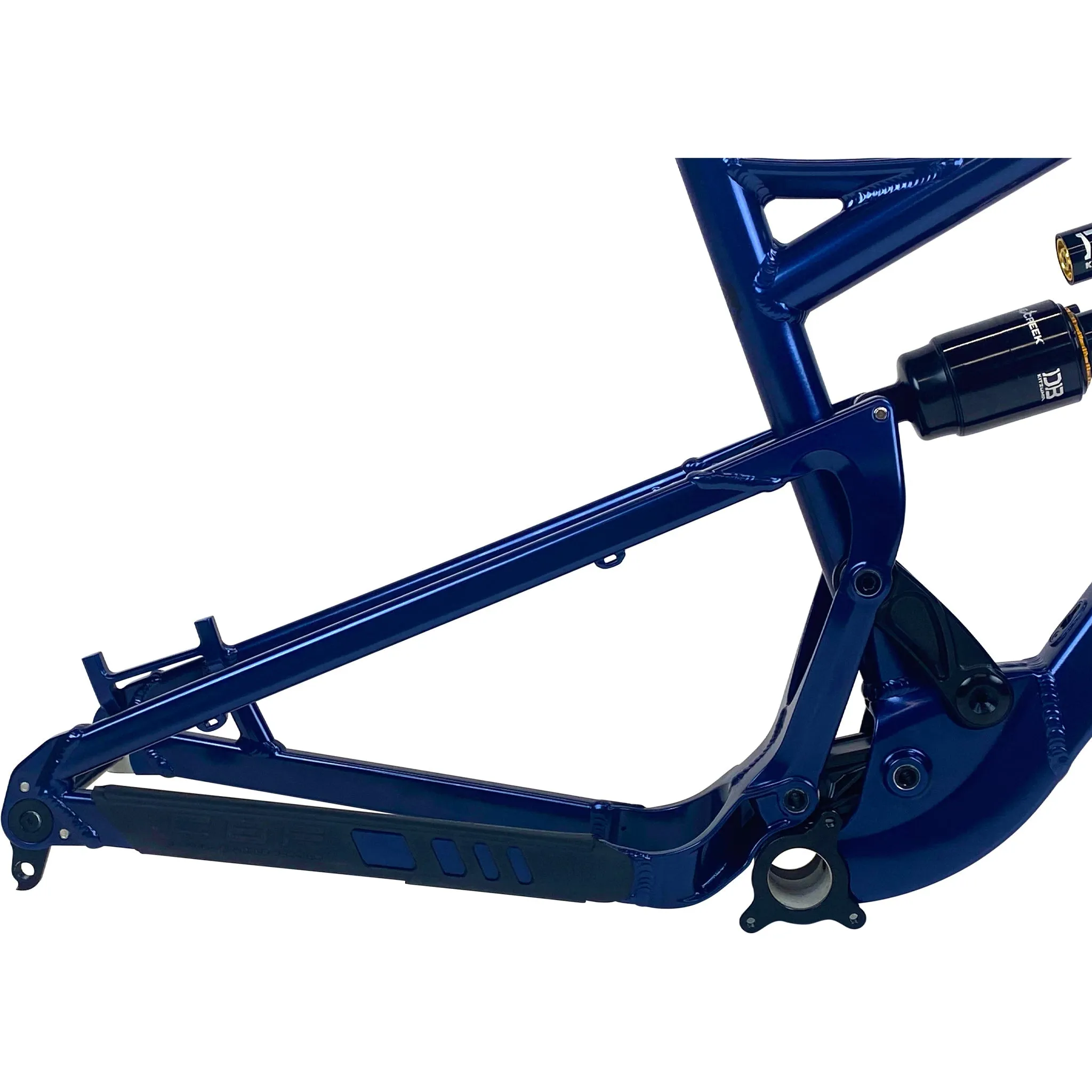

• Redesigned rear-triangle with forged one-piece vertical stays

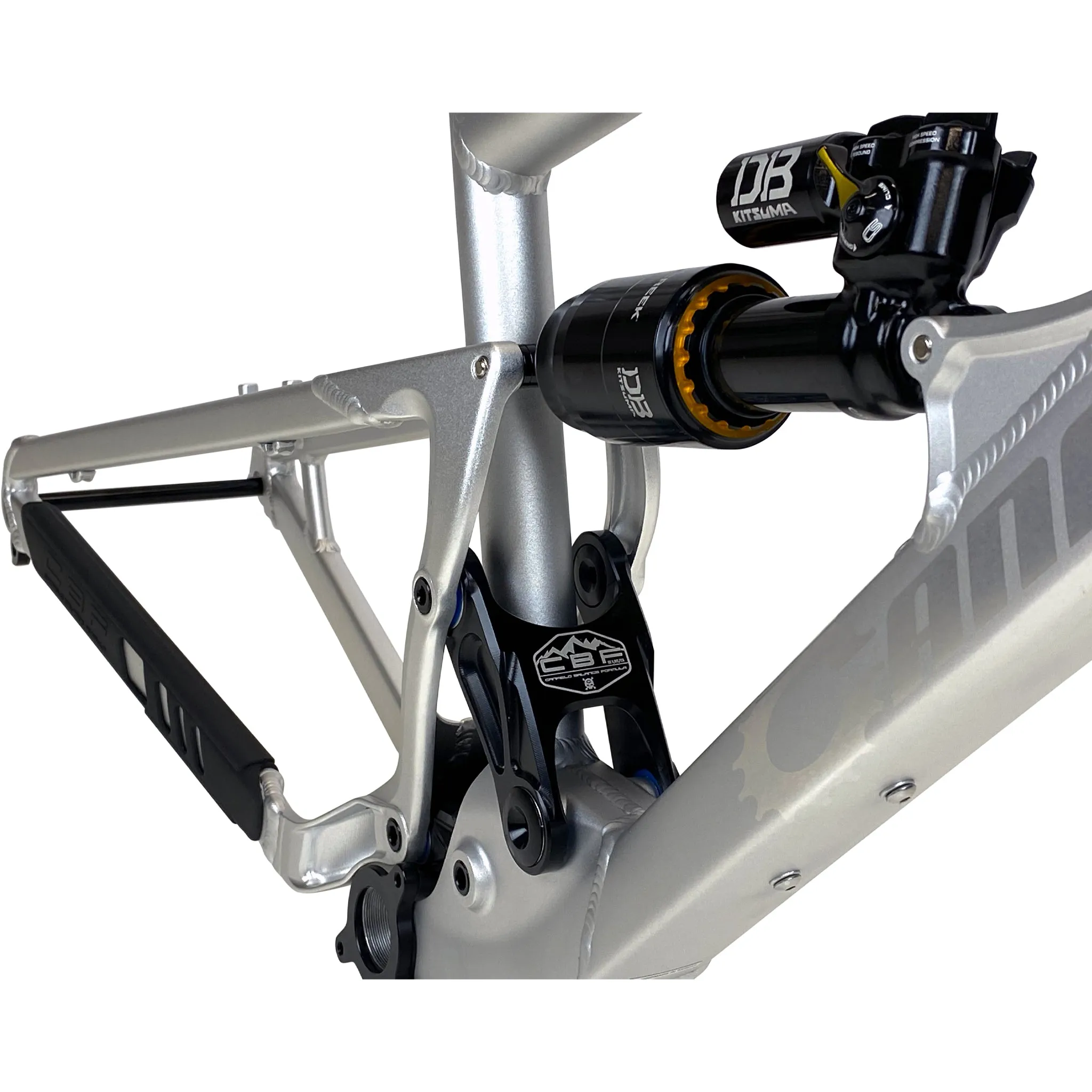

• One-piece upper and lower links
• Custom CBF Chainstay Protector
• Water-bottle mount
• Replaceable rear derailleur hanger
FRAME SPECS
• 7005 aluminum with 7075 T6 CNC links
• Internal cable routing with interchangeable machined ports
• Shock Specs (Metric):
-138mm travel 210mm x 55mm (20mmX8mm/40mmX8mm hardware)
• Recommend fork length: 130mm – 150mm
• Tapered Headtube 44mm upper/56mm lower
• Recommended fork offset: 44mm
• 15mm pivot bearings (6902 Max)
• Seatpost: 30.9mm, stealth dropper compatible
• Seatpost clamp: 35mm
• Rear dropouts: Boost 148mm x 12mm, Canfield axle included
• Max rear tire size: 29x2.5/27.5x2.8
• Removable ISCG tabs: ISCG 05
• Brake mount: Post Mount 180mm
• Bottom bracket: 73mm threaded
• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)
• Weights (medium):
-Frame w/ hardware: 7.6 pounds
-Frame w/ shock: 8.9 pounds
-Complete (carbon wheels, air shock/fork): 31.8 pounds
NOTE: Full assembly is required on complete bikes. Photos for illustration purposes only. Actual component spec not shown.
